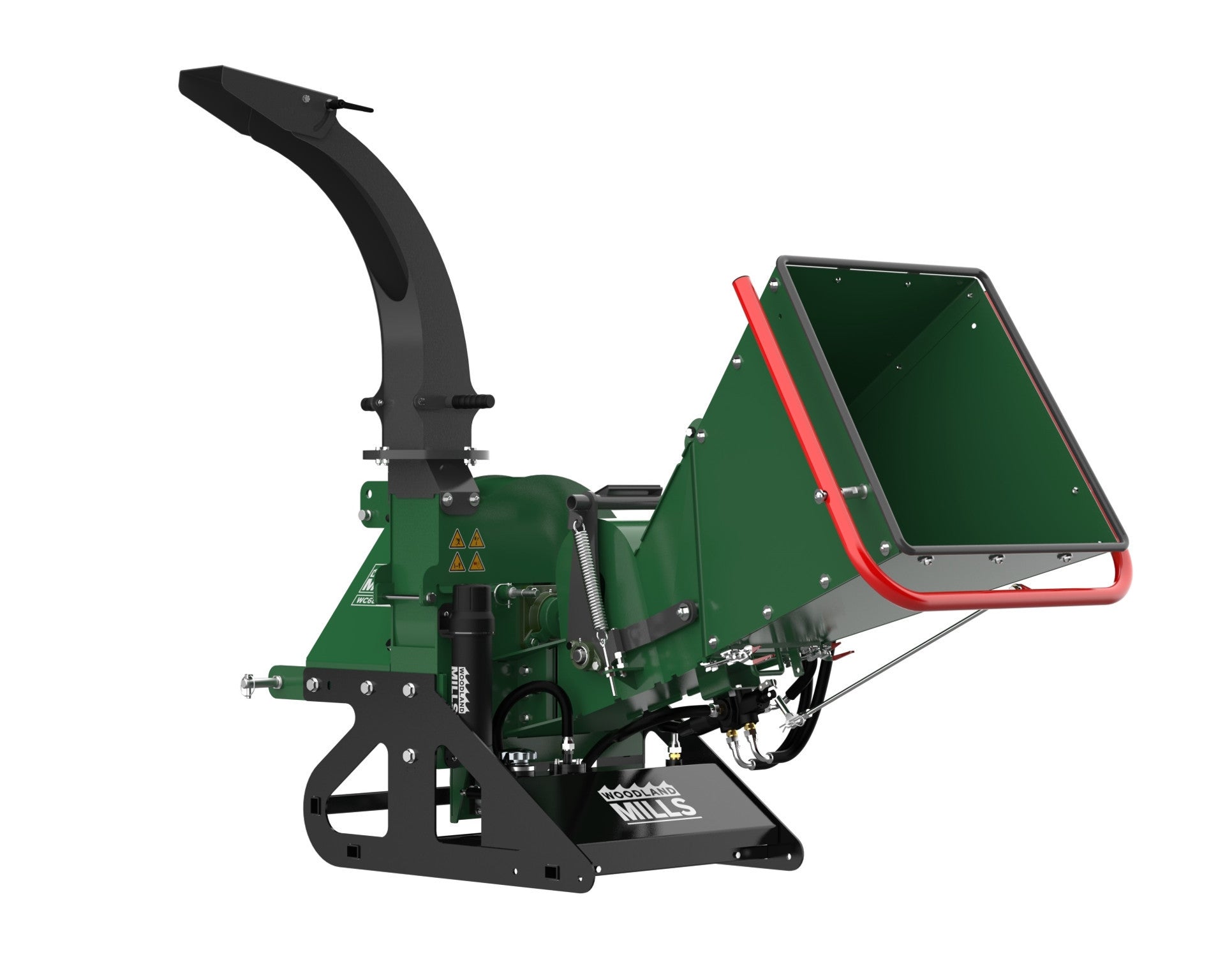

WC68 PTO Wood Chipper

The WC68 operates on tractors with 20 to 50 HP at the PTO. It has a large 23” x 27” (58 cm x 69 cm) infeed hopper opening that tapers down to a 6” x 8” (15 cm x 20 cm) opening where the 8.25” (21 cm) diameter roller grabs the branches and feeds them through the chipper. Branches as small as ¼” (6 mm) diameter and as large as 6” (15 cm) diameter can be fed through the WC68. To chip full 6” (15 cm) diameter logs at full infeed speed, a tractor with over 40 HP at the PTO is required.

Branches are pulled into the WC68 with the 8.25” (21 cm) diameter infeed roller. The roller is hydraulically driven by the chipper's self-contained hydraulic system, and the hydraulic pump is belt driven from the main flywheel shaft. The infeed roller is adjustable in direction and speed, making it easy to feed branches of all shapes and sizes. The roller down pressure may be adjusted via two large springs, ensuring it grabs branches and easily pulls them in, eliminating the need for manual feeding.

The dynamically balanced 24” (61 cm) diameter, 3/4” (2 cm) thick solid steel flywheel runs on a 2” (5 cm) diameter shaft, supported by 2 industrial and greaseable flanged bearings. It features four CNC-machined pockets to hold the reversible blades. The flywheel features four large fan blade paddles that spin at over 540 RPM.

No more unsafe blade changes with the Woodland Mills flywheel locking pin. The WC68 features a flywheel locking pin that makes blade changes or flywheel maintenance convenient and safe. The pin simply fits into a series of holes that are positioned so every blade can be easily accessed while being changed or reversed.

The WC68 chipper utilizes four high-quality hardened steel reversible chipper blades. These blades are 90 degrees apart, and can be reversed to take advantage of having two cutting edges on each blade. The blades are held onto the flywheel with four countersunk M10 bolts and locking nuts. Blades can be changed very quickly, thanks to the clamshell flywheel housing design. Simply undo one bolt and the upper flywheel housing rotates open, providing full access to the flywheel and chipper blades.

The infeed chute on the WC68 wood chipper has a large 23” x 27” (58 cm x 69 cm) opening, making it easy to feed branches with multiple limbs effortlessly. The infeed chute can also be folded up to decrease the footprint of the chipper during transport or storage.

The opening in the flywheel housing is 6” x 8” (15 cm x 20 cm), making it capable of accepting branches with several limbs. This reduces the need to trim branches down before feeding them into the chipper.

The discharge chute was designed to rotate 360 degrees by simply rotating it with the two handles to the desired angle. This makes it possible to direct the wood chips in any direction, regardless of the location of the chipper. The end of the chute stands at 66” (1.7 m) off the ground, making it easy to direct the wood chips into the back of a truck or trailer. A rotating deflector is located at the end of the discharge chute, allowing further control of the location of the wood chips. Simply point it straight for maximum distance or angled down to deflect the chips directly down to the ground or into a trailer.

The PTO shaft, complete with shear pin, is included with the WC68 chipper.

Specifications :

Drive System
Tractor PTO

Required PTO HP
20 - 50

Chipping Diameter
6" [15 cm] Branch Diameter

Flywheel System
Single Flywheel

In-feed Chute Opening
27" x 26” [69 cm x 66 cm]

In-feed Opening
6" x 8” [15 x 20 cm]

In-feed Chute
Quick folding for transport/storage

In-feed System
Self Contained Hydraulic System

In-feed Drive
Forward/Neutral/Reverse with Variable Speed: [0-75 ft-min] / [23 m/min]

In-feed Roller Size
8" [20 cm] Chisel Tooth

In-feed Roller Pressure
Adjustable via Spring Tension

Quick Hitch Compatible
Cat 1 Quick Hitch

Transport
Tractor 3 Point Hitch

Flywheel Speed
540 RPM

Flywheel Drive System
Direct Drive

Flywheel Diameter/Thickness
24” x 3/4” thick [61 cm x 2 cm thick]

Flywheel Housing System
Easy To Open Clamshell (for easy clean out and blade changes)

Flywheel Housing Thickness
5/16" [8 mm] Thick

Flywheel Shaft
2" [50 mm] Diameter

Hydraulic System
Yes - Standard NPT Fittings & Valves

Hydraulic Oil
19 L / 5 gallons of ISO 32 or ISO 46 (warmer climates)

Hydraulic Pump
Yes - Belt Driven

Discharge Chute
360 Degree Swivel

Chipper Base
Adjustable Laser Cut Plate Design

PTO Shaft
Shear Pin Protected PTO Shaft Included

Finish
Powder Coat Paint

Number of Blades
4 Reversible Blades

Product Weight
747 lb [340 kg]

Shipping Weight
825 lb [374 kg]

Manuals and Drawings :

Operator's manual

Shipping and Pick-up :

WARRANTY :

At Woodland Mills, we put our customers first. If you have any questions about a product you purchased, you can contact us . The WC68 is backed by the 3-year Woodland Mills warranty (excludes wearing parts and cosmetic damage).
